Six product series covering all Thermal &acoustic management needs for ICE vehicles, NEVs, and fuel cell vehicles

Z-Tex® Continuous Fiber

Z-Mat® Heat Resistant Mat

Z-Fabric FP®

Z-SupShield®

Z-Supbeam®

SERIES 01

Z-Tex® Continuous Fiber Series

High-performance continuous glass fiber, certified by all major global OEMs, for cold-end and hot-end thermal protection of exhaust systems

SERIES 01 — CONTINUOUS FIBER

Z-Tex® Series

The Z-Tex® series is GBS&T's flagship product, manufactured using advanced continuous fiber weaving technology with excellent high-temperature stability and thermal insulation performance. The product line covers Z-Tex, Z-Tex Plus, Z-Tex Super, and Z-Tex Ultra models, with working temperatures from 650°C to 1050°C to meet different application requirements.

The Z-Tex® series glass fiber has been certified by all major OEMs and is the preferred material for global exhaust system thermal protection.

High-Temperature Stable

Lightweight

Flexible & Formable

Corrosion Resistant

Low Thermal Conductivity

OEM Certified

Z-Tex® Series Product Parameter Comparison

Parameter

Z-Tex®

Z-Tex Plus®

Z-Tex Super®

Z-Tex Ultra® M

Z-Tex Ultra®

E-Glass

Glass Type

Drawn Continuous Fiber

Acid-Leached Chopped Yarn

Drawn Continuous Fiber

Softening Point (°C)

905–915

920–930

945–950

—

815–825

Working Temperature (°C)

755

778

850

1050

850

650

Tensile Strength (MPa)

2400–2800

2700–3100

3500–4000

—

2000–2400

Elastic Modulus (GPa)

85–90

90–95

95–100

—

80–85

OEM Approvals

VW TL52498 GM GMW16977 TOYOTA TIS01208 HONDA 1824Z Hyundai MS920

VW TL52498 GM GMW16977 TOYOTA TIS01208

VW TL52498 GM GMW16977 TOYOTA TIS01208 TL52725

—

Z-Tex LP®

NEW

LOW EMISSION — New Low Emission Product

Targeting China 6B emission regulations, Z-Tex LP® uses lower sizing content to significantly reduce exhaust particulate emissions (PM&PN), while offering better bulkiness, improved filling processability, non-stick to rubber wheels, and smoother filling.

View Product Specification

30%

PM weight reduction (0–23km)

PN count reduction (0–23km)

40%

Overall particulate count reduction

Z-Tex® Product Types

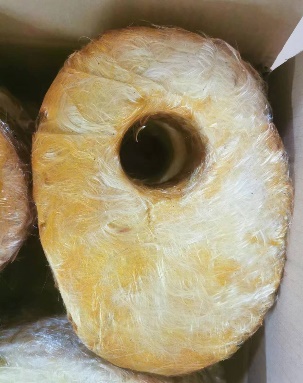

Molded Parts

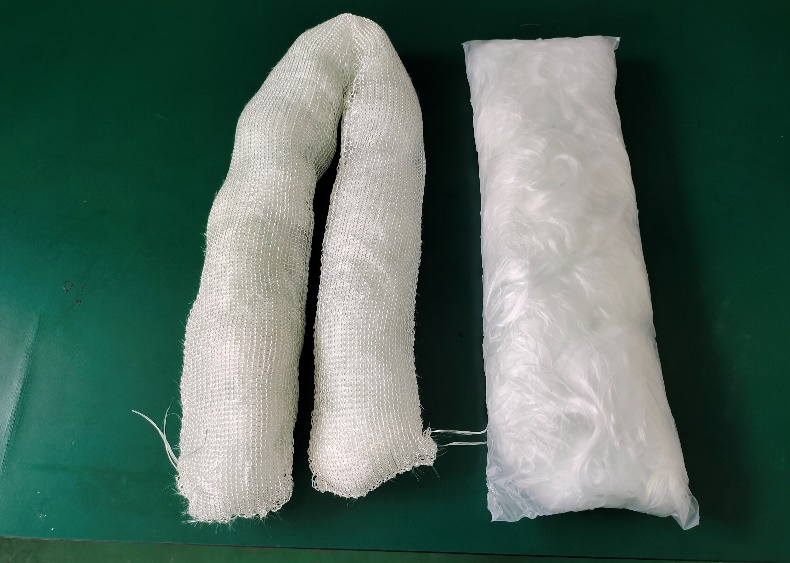

Glass Fiber Bags

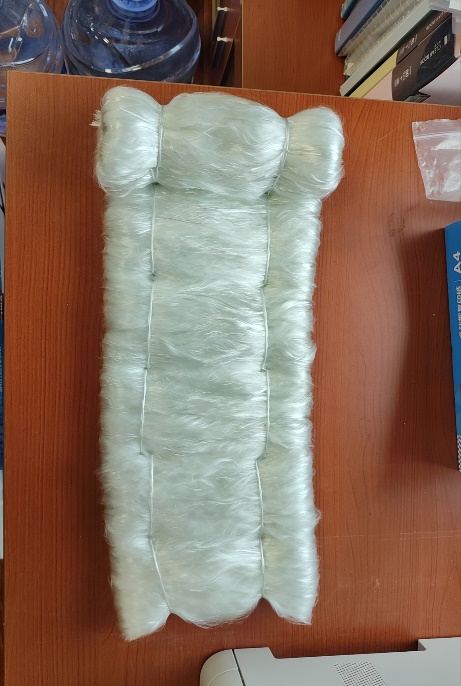

Eco Acoustic Cotton

Direct Roving

SERIES 02

Z-Mat® Heat Resistant Mat Series

Specialty inorganic fiber heat resistant mat for hot-end thermal protection of exhaust systems, customizable thickness and density

SERIES 02 — HEAT RESISTANT MAT

Z-Mat® Series

The Z-Mat® heat resistant mat series is made from specialty inorganic fibers with excellent thermal insulation performance and flexibility. It can be customized in different thickness and density specifications according to customer requirements, suitable for thermal protection wrapping of complex-shaped components. The series covers E-Mat, Z-Mat, Z-Mat Super, Z-Mat Ultra, and other models.

Flexible & Cuttable

Excellent Insulation

Sound Absorption

Custom Specifications

High-Temperature Stable

Z-Mat® Series Product Parameters

Parameter

E-Mat®

Z-Mat®

Z-Mat Super®

Z-Mat Ultra®

Z-Mat Ultra® M

Glass Type

E glass

Z-Tex®

Z-Tex Super®

Z-Tex Ultra®

Z-Tex Ultra® M

Fiber Diameter (µm)

7–13

9–17

9±3

Working Temperature (°C)

650

755

850

1050

850

Thickness (mm)

3–40

Density (kg/m³)

100–160

Areal Density (g/m²)

300–3750

Loss on Ignition (%)

<2 (before heating) <1 (after heating)

≤13 (before heating) ≤2 (after heating)

Shrinkage (%)

<2 (before heating) <1 (after heating)

<5 (before heating) <1 (after heating)

≤10 (before heating) ≤1 (after heating)

Z-Mat® Product Types

Z-Mat® Heat Resistant Mat

Aerogel Mat

Thermal Insulation Cotton

Molded Parts / Glass Fiber Bags / Eco Acoustic Cotton / Direct Roving

Molded Parts

Glass Fiber Bags

Eco Acoustic Cotton

Direct Roving

SERIES 03

Z-Fabric FP® Fire Protection Sheet/Tube Series

Dedicated fire protection and thermal insulation material for NEV battery packs, comprehensively outperforming traditional mica

SERIES 03 — FIRE PROTECTION

Z-Fabric FP®

The Z-Fabric FP® fire protection sheet series is specifically designed for NEV battery pack fire protection and thermal insulation. The company operates 760 air-jet and rapier looms with the world's largest annual production capacity of 200 million square meters. Product thickness ranges from 0.2mm to 2.0mm, covering all scenarios including module fire insulation, battery pack fire protection, and water cooling tube fire protection.

Compared to mica: superior heat resistance (1300°C×10min, back temperature only 450°C), lower thermal conductivity (0.02–0.1 W/mK vs mica 0.43–0.5), lighter weight (density 1.2 vs mica 2.5–2.9 g/cm³), flexible processing.

Fire & Flame Retardant

Oil & Corrosion Resistant

High Insulation

Flexible Processing

Multiple Specifications

Z-Fabric FP® vs Mica Performance Comparison

Property

Z-Fabric FP®

Mica

Thickness

0.5–3.0 mm

1.0–3.0 mm

Bulk Density

1.2 g/cm³

2.5–2.9 g/cm³

Heat Resistance (Back Temp)

1300°C×10min, back temp 450°C

1300°C×5min, back temp 590°C (burn-through)

Short-term Heat Resistance

1500°C×2min, 4Bar, back temp 480°C

1300°C×1min, 4Bar, burn-through

Thermal Conductivity @25°C

0.02–0.1 W/(mK)

0.43–0.5 W/(mK)

Insulation Resistance

≥9999 MΩ

≥500 MΩ

Dielectric Strength

≥25 kV/mm

13–15 kV/mm

Processability

Flexible, suitable for all complex processing types

Brittle and fragile

Z-Fabric FP® Full Specification Parameters

Parameter

0.2mm

0.3mm

0.5mm

0.8mm

1.0mm

1.5mm

2.0mm

Tube

Test Standard

Density (g/cm³)

1.5

1.2

1.3

GB/T 17911

Heat Resistance (°C)

>1000

>1300

>1000

GB/T 17430

Thermal Conductivity W/(mK)

≤0.15

GB/T 10295

Insulation Resistance (MΩ)

≥10⁴

IEC 60243

Dielectric Voltage (KV)

≥2.7

IEC 60243

Tensile Strength (N/25mm)

≥500

≥600

≥1000

≥1500

≥2000

≥1000

GB/T 7689.5

Application

Module Fire Protection & Insulation

Battery Pack Fire Protection

Water Cooling Tube Protection

—

Z-Fabric FP Tube

The product offers excellent fire protection and insulation performance. Diameter can be made from 10mm to 30mm, suitable for protecting water cooling tubes inside battery packs and strip-shaped components.

Parameter

Specification

Density

1.0–1.8 g/cm³

Coating

High-temperature phase change material (inorganic non-metallic oxide)

Diameter

8–30 mm

Heat Resistance

1000±200°C, 3min, no burn-through

Insulation Voltage

≥2.7 KV

Flammability

UL94 V0

Z-Fabric FP® Application Cases

SAIC Z-Fabric FP® 0.8/1.0

IM & Audi — Battery Pack Fire Protection

CATL Z-Fabric® 0.2/0.3

CATL 2nd Generation Composite Strip Product

BYD Z-Fabric Quilt® 1.9

The only certified product for BYD

SERIES 05

Z-SupShield® Underbody Shield

Composite underbody shield, over 50% weight reduction vs. steel, with excellent heat resistance and mechanical properties

SERIES 05 — UNDERBODY SHIELD

Z-SupShield®

Z-SupShield® uses Z-Tex® and Z-Fabric® series as reinforcement materials combined with epoxy resin to form a high-performance underbody shield material. Compared to traditional steel plates, it achieves over 50% weight reduction while maintaining excellent heat resistance, mechanical properties, and chemical corrosion resistance.

50%+ Lightweight

Ultra High Heat Resistance

Impact Resistant

Chemical Corrosion Resistant

Low Thermal Conductivity

Z-SupShield® vs Traditional Materials Comparison

Material

Density (g/cm³)

Tensile Strength (MPa)

Specific Strength

Thermal Conductivity W/(mK)

Corrosion Resistance

Steel

7.8

780

100

48.5

PVC coating

Aluminum Alloy

2.7

290

107

201

Passivation

Z-SupShield®

1.85

450

243

0.5

Excellent

Basic Parameters

Parameter

Specification

Material

Z-Tex® / Z-Fabric® + EP resin

Density

1.8–2.0 g/cm³

Thickness

2.0–4.0 mm

Thermal Conductivity @23°C

0.5 W/(m·K)

Mechanical Properties

Property

Strength

Modulus

Standard

Tensile

400 MPa

25 GPa

ISO 527-5

Flexural

600 MPa

20 GPa

ISO 14125

Shear

26 MPa

—

ISO 14130

Impact

300 KJ/mm²

—

ISO 179-1

Weight Reduction Application Cases

IM & Audi

Steel T0.8mm: 19.5 kg

Z-SupShield T1.8mm: 8.39 kg

57% weight reduction

Roewe MG NE1X

Steel+PVC: 25 kg

Z-SupShield T2.4mm: 11.8 kg

53% weight reduction

Hongqi XB69

Steel T0.8mm: 9.50 kg

Z-SupShield T1.8mm: 6.59 kg

57% weight reduction

ROEWE/MG NE01

Steel T0.8mm: 15 kg

Z-SupShield T1.8mm: 3.96 kg

59% weight reduction

Test items: Underbody scrape (Reverse 5KM/H / Forward 30KM/H), external fire test, full vehicle scrape & heavy truck crush

SERIES 06

Z-Supbeam® Structural Component

High-performance composite structural component, ultra-high tensile strength, for automotive structural protection

SERIES 06 — STRUCTURAL BEAM

Z-Supbeam®

Z-Supbeam™ uses Z-Tex Super® and Z-Mat® series as reinforcement materials combined with EP/PU resin to form a high-performance structural component with ultra-high tensile strength (0° direction 1592 MPa) and excellent compressive performance, suitable for automotive structural protection applications.

Ultra-High Strength

Lightweight

Impact Resistant

Structural Protection

Basic Parameters

Parameter

Specification

Material

Z-Tex Super® / Z-Mat® + EP/PU resin

Density

2.0–2.1 g/cm³

Thermal Conductivity @23°C

0.55 W/(m·K)

Mechanical Properties

Direction/Type

Strength (MPa)

Modulus (GPa)

Strain (%)

0° Tensile

1592.77

63.41

2.78

90° Tensile

50.25

18.83

0.45

0° Compression

1372.69

63.34

2.16

90° Compression

154.55

20.17

1.49

In-plane Shear

60.54

5.00

Interlaminar Shear

60.43

—

FUEL CELL VEHICLES

Fuel Cell Vehicle Applications

Z-Tex® series dedicated for hydrogen tank carbon fiber winding, meeting the stringent requirements of fuel cell vehicles

Hydrogen Tank Winding Application

The Z-Tex® series glass fiber is specifically designed for hydrogen tank carbon fiber winding processes, used in combination with high-strength, high-modulus carbon fiber to meet the stringent requirements of fuel cell vehicle hydrogen storage systems.
